DIGITAL SPEED INPUT BOARD
DIGITAL SPEED INPUT BOARD
RESISTIVE NETWORK
STATUS LED INDICATOR
YT204001-FC
Control board
Voltage: Typically 24 VDC (±10%)
Power Consumption: <5–10 W
Digital Inputs: 8–16 channels
Analog Inputs: 4-20 mA/0-10 V
Temperature Range: -20°C to +70°C
Communication Module
Data Rate:31.25 kbit/s
Power Supply:24 V DC (via controller backplane)
Power Consumption:Typically 0.8 W per channel
Isolation:500 V AC
RUN (Green): Module operation
COM (Green/Yellow): Communication status
ERR (Red): Fault indication
ACS800 Drive Board
Input Voltage:380–480 V AC
DC Link Voltage:540–650 V DC
Auxiliary Voltage:24 V DC
Product Line:ABB ACS800 Industrial Drives
Isolation Voltage:2.5 kV AC
ACS800 Drive Board
Input Voltage:380–480 V AC (±10%)
DC Link Voltage:540–650 V DC
Protections:DC over/undervoltage
Auxiliary Voltage:24 V DC
Isolation Voltage:2.5 kV AC
INTERFACE BOARD
Data Rates:9.6 kbps – 12 Mbps
Power Supply:24 V DC
Power Consumption:≤ 2.5 W
Isolation:500 V AC
Function:PROFIBUS DP-V1 Slave Interface
Processor module
Memory Size:5032 kB
Memory Type User Data:RAM
Controller Processing Time:0.00002 ms
Number of Digital Inputs:12
Number of Digital Outputs:8
Number of Digital Configurable I/Os:2
Input Voltage Type:DC
Output Voltage (Uout):24 V DC
Output Current:0.5 A
Degree of Protection:IP20
Rated Voltage (Ur):24 V DC
Supply Voltage:20.4 … 28.8 V DC

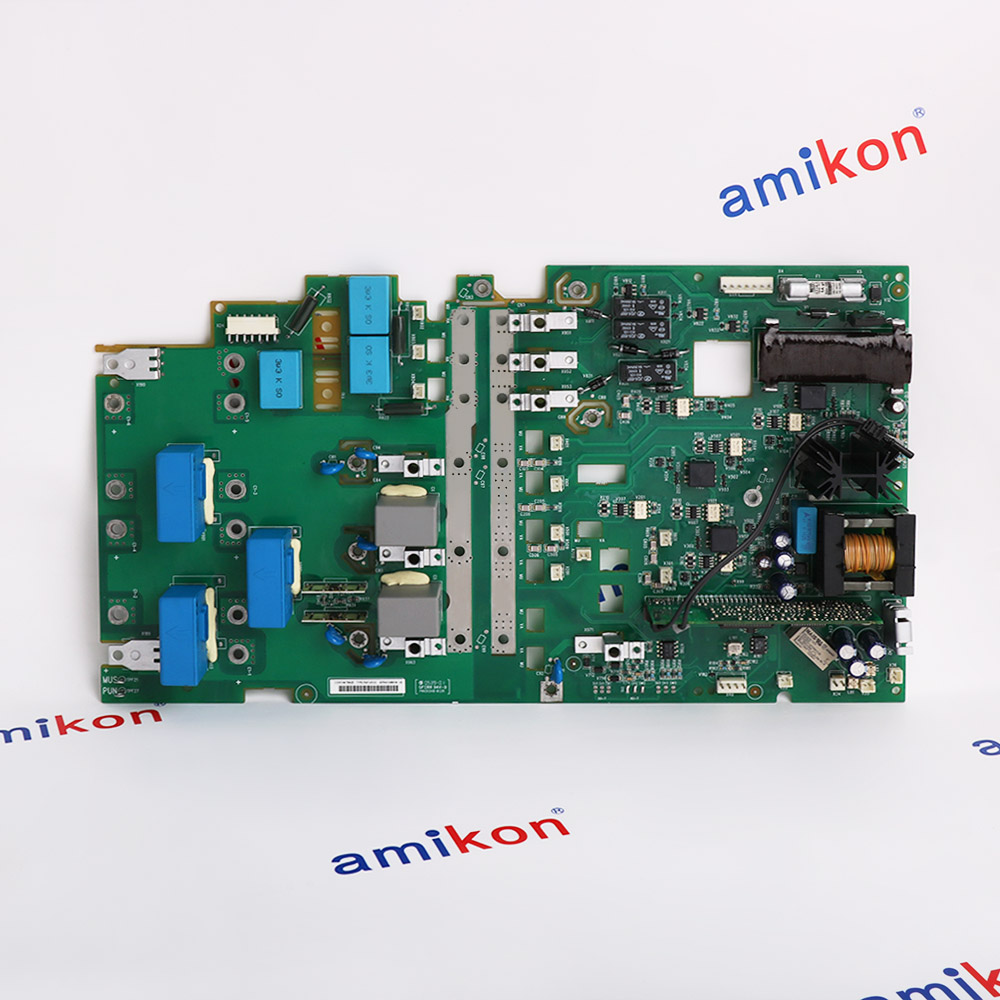

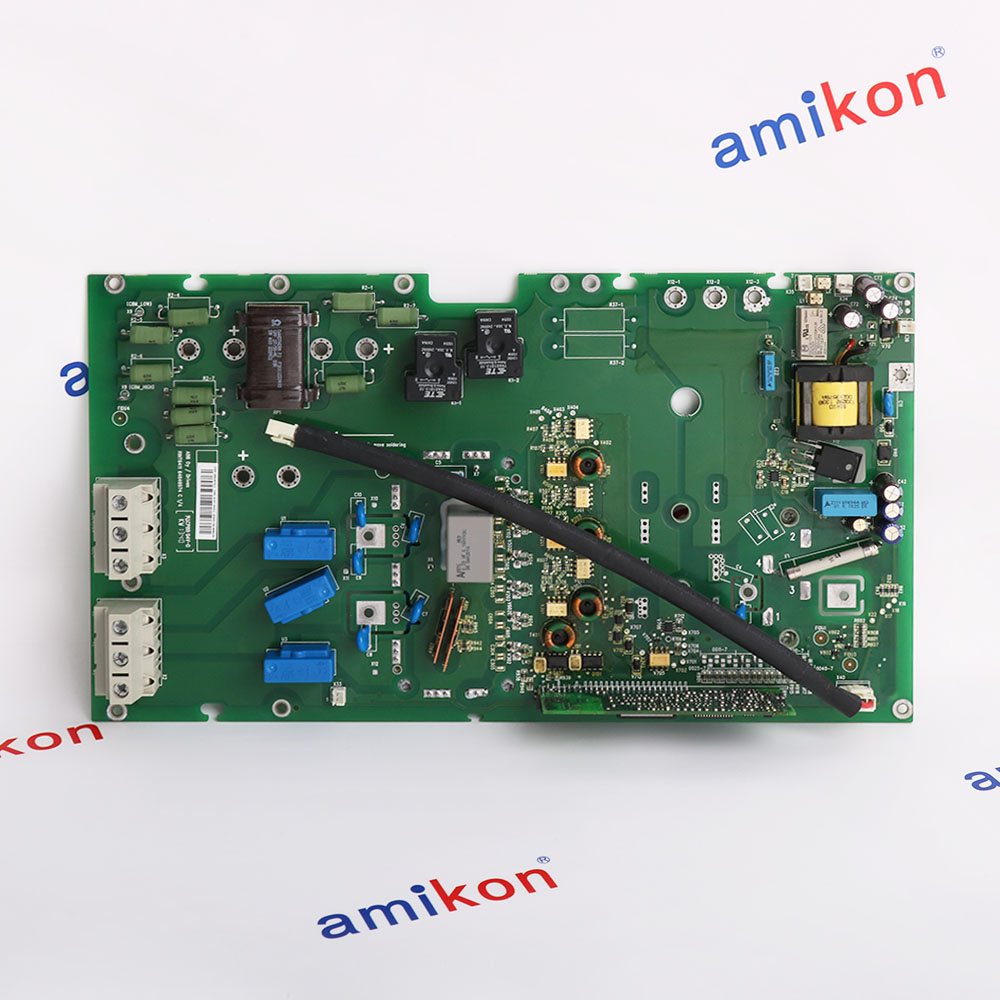

MAIN CIRCUIT INTERFACE BOARD
Input Voltage:200–480 V AC
DC Link Voltage:280–650 V DC
Auxiliary Voltage 24 V DC
PWR (Green): 24V OK
RDY (Yellow): Drive ready
ERR (Red): Fault detected
Isolation Voltage:2.5 kV AC

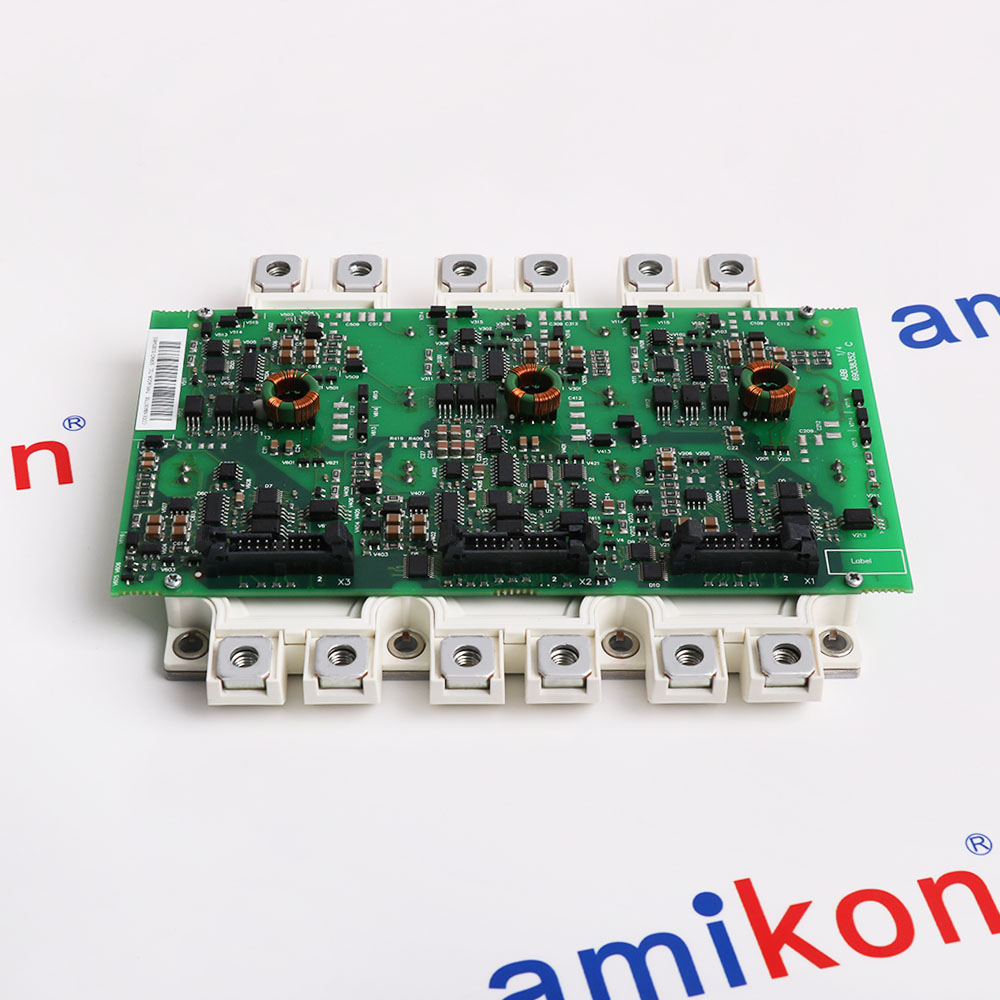

IGBT Module
Voltage Rating:1200 V
Current Rating:900 A
Technology:Trench-gate IGBT4
Collector-Emitter Sat.:VCE(sat): 1.75 V (typ.)
Short-Circuit Withstand:10 μs
Isolation Voltage:4.5 kV RMS
IGCT Module
Configuration:Single IGCT
Voltage Rating:4500 V
Current Rating:1200 A
Critical dv/dt:1000 V/μs (min.)
Isolation Voltage:10 kV RMS
Mounting Force:35–45 kN
Analog Input Module
Function:32-Channel Analog Input Module
Voltage: ±10 V DC, 0–10 V DC
Current: 0–20 mA, 4–20 mA
Resolution:15 bits + sign
Accuracy:±0.1% of full scale @ 25°C
Update Time:8 ms (all channels)
Common-Mode Rejection:>120 dB @ 50/60 Hz
Overvoltage Protection:±35 V DC
Power Supply:24 V DC
LOGIC CONTROLLER
LOGIC CONTROLLER
32 CHANNELS
18-30 VDC
2 VDC
OUTPUT RATING: 0.01 A MINIMUM
AT 24 VDC 1.0 A MAXIMUM
24 VDC CONTINUOUS
SURGE: 2.5 A PER CHANNEL
ISOLATION: 1K VDC
10 MA PER CHANNEL
SSI Speed Sensor Interface
Frequency:62.5 kHz
Cable Length Support: Up to 350 meters
Internal Logic Supply: +5V DC
Encoder Supply: +24V DC
Current Limit: Typically 250mA
Digital Output Module
Channels: 20 single-ended channels
Voltage: ±10 V DC
Current: 0–20 mA, 4–20 mA
Voltage Inputs: >1 MΩ.
Current Inputs: 250 Ω
Noise Rejection: >80 dB (50/60 Hz)
Channel-to-Backplane: 1,500 V AC RMS
COMMUNICATION UNIT
Data Throughput: Up to 10,000
RAM: 512 KB
Voltage: +5V DC
Consumption: 10 W (typical)
Isolation:1500V AC
Fiber optic: Up to 4 km
Max Nodes: Up to 250 devices per loop
Control unit
Processor:32-bit
I/O Capacity Up to 1,024 I/O points
Voltage: +5V DC
Consumption: 15 W
Battery Backup:BCL003 battery module
Modbus TCP Interface Module
Data Types:16-bit & 32-bit integers
Voltage: 5 V DC
Power Consumption: Typically 1.5 W
Isolation:1500 V AC galvanic
Multi Fuel-flame Detector
Detection Range:Up to 40 meters
Response Time:< 3 seconds
Supply Voltage:24 V DC
Power Consumption:4–8 W (DC)
Relay Contacts: 2× SPDT
Analog Output: 4–20 mA
