Allen-Bradley

SMC PLUS 135 A Smart Motor Controller

MicroLogix 1100 Battery

PanelView Plus 7 Graphic Terminal

1715 8 Point Digital Output Module

Part Number/Catalog No:15-OB8DE
Product Line:Bulletin 1715 Redundant I/O module
Module Type:-Point Digital Output Module
I/O Module:8-Point Digital Output Module
Power Dissipation:3 Watts Maximum
Wire Size:18 to 16 AWG
Dimensions:166 x 42 x 118 millimeters
Weight:290 grams
Shock Rating:25 g when installed and operation
Mounting:DIN Rail
Output Signal:18 to 32 Volts DC

PanelView Plus 7 Touch Screen

Product Line:Panelview Plus 7
Product Type:Human-Module Interface
Input Type:Touchscreen
Memory:512 Mb
Input Voltage:24 Volts DC
Backlight:LED
Input Voltage range:18-30 VDC
Power Consumption:50 W max (2.1 A at 24V DC)
Display Type:Color active-matrix TFT
Display Size:12.1 in. ; wide screen

ControlLogix 10MB controller

Series:ControlLogix
Tasks:32
Module Type:Processor Module
Communications:USB, Ethernet
Communication Speed:12 MB-Second
Communication:1 port USB; Ethernet
Ethernet Nodes:100 or 250
Ethernet Communication Speed:10/100/1000 Mbps
Current Draw (1.2 Volts DC):5 milliamps

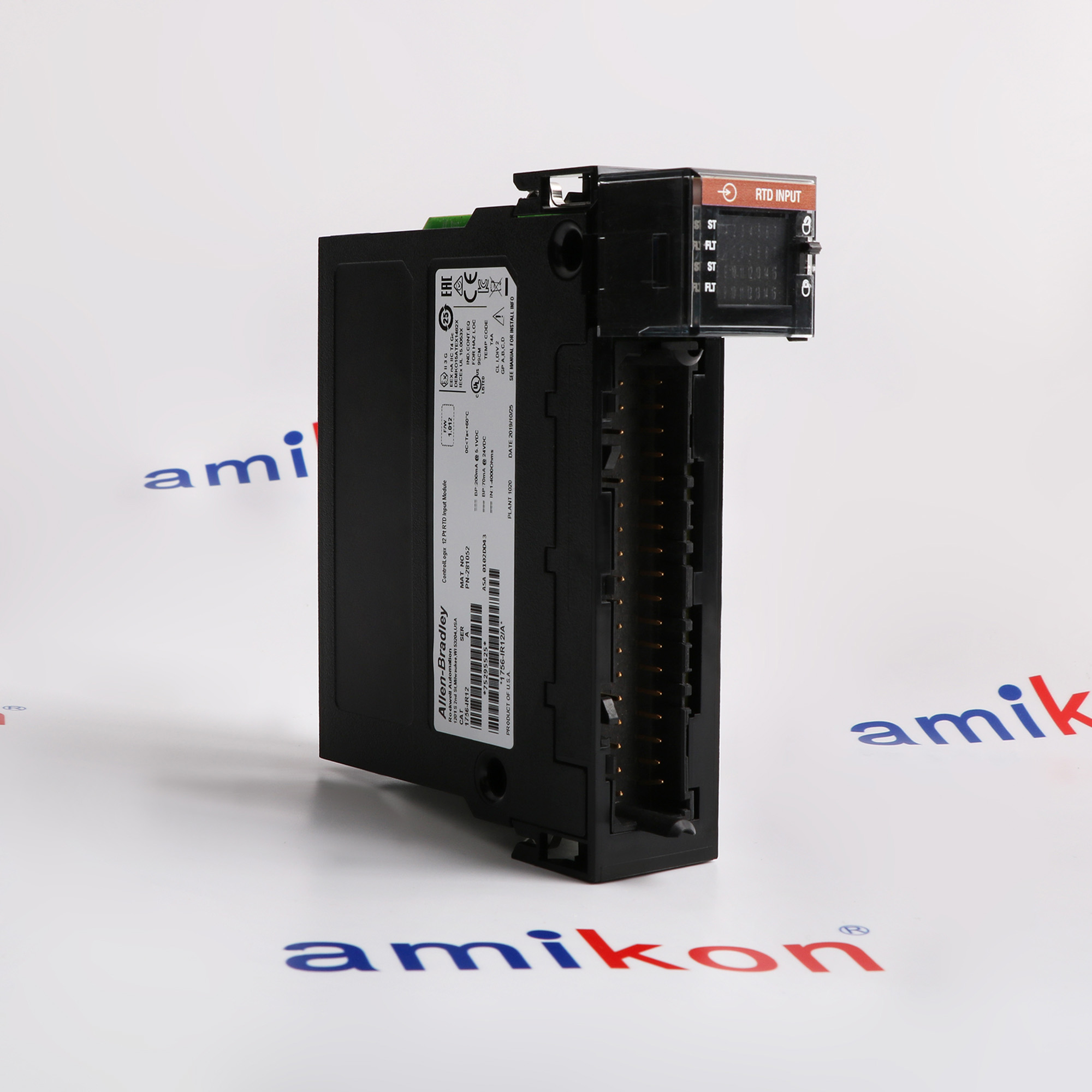

ControlLogix analog input module

Series:ControlLogix
Part Number:1756-IR12
Application:General purpose I/O
Module type:Analog input, 3-wire RTD connections
Number of channels:12, non-isolated
Data resolution:24-bit
Mounting:Chassis
Display:Status LED

PowerFlex 750 24V DC IO Option module

Guardmaster TLS-GD2 Guardlock Switch

1715 16 Point Digital Input Module

High-speed Analog I/O Module

Inputs:4 high speed sub-millisecond differential
Module Type:High Speed Analog Input / Ouptut Module
Outputs:2 high speed current-voltage
Input signals ranges:± 10V
0…10V; 0…5V; 0…20 mA
Input Resolution:14 bits across ±10.5V DC
12 bits across 21 mA
No. of Outputs 2 high speed current/ voltage
Output Resolution:13 bits across 21 mA = 2.8 µA/bit;
14 bits across 21.8V = 1.3 mV/bit
Output Signal Ranges:± 10V; 0…20 mA

ControlLogix Power Supply Bundle

Input Voltage:120/240VAC
Input Voltage Range:85-264VAC
Max Inrush Current:20 Amperes
Output Power:75 W @ 0…60 °C (32…140 °F)
Annunciator Power:240V AC 50/60 Hz, 240V DC, 50 mA, resistive only
Hold Up time:2 cycles @ 60 Hz; 2 cycles @ 50 Hz
Input Voltage:85-265 VAC

ControlNet Fiber Ring Long Distance Repeater

Product Line:ControlNet Repeater
Repeater Type:Fiber Ring Repeater Module
Fiber Type:62.5/125 micron multi-mode fiber
Fiber Operating Wavelength:1300 nm
Attenuation Levels:15 dB
Input Power:5V DC
Typical Repeater Distance:0-10km
Backplane Current Draw:570 mA

Flex XT 8 Point Thermocouple RTD Module

DRIVE CONTROL BOARD

DRIVE CONTROL BOARD
UP TO 4 MOTORS
480 VAC
15 AMP
7.2 KW
16 DIGITAL INPUT
16 DIGITAL OUTPUT

Kinetix 300 Servo Drive

63 A 194E Load switch

194EE631753
LOAD SWITCH
194E
63 AMP
3 POLE
OFF-ON 90
OPEN SWITCH STYLE
FRONT/DOOR
STANDARD TERMINALS
SELECT ACTUATOR SEPARATELY

POINT I/O 2 Point Analog Output Module

Module Type:Analog Output Module
Series:POINT I/O
Part Number/Catalog No.:1734-OE2C
No. of outputs:Two (2) Single-ended, non-isolated channels
Output signal:0-20 mA; 4-20 mA
Absolute Accuracy:0.1% Full Scale @ 25 Deg. Celsius
Step Response (63% of FS):24 µs
Converter Type:Digital to analog converter
Data Format:Signed Integer
Current Draw:75 mA @5V dc

POINT I/O Terminal Base

Part Number/Catalog No:1734-TB
Series:POINT I/O
Module Type:Terminal Base
Positions:8
Clamp Type:Cage-Clamp RTB

Resistance Module

Converter Type:Sigma-Delta
Product Family:MicroLogix
Inputs:4
Heat Dissipation:1.5 Watts
Product Type:RTD / Resistance Input Module
No. of Inputs:Four (4)

700TBR24
SOLID STATE RELAY
TERMINAL BLOCK STYLE
6 AMP
24 VDC
250 VAC
5 PIN

PM3398B6P13PE
DISCONTINUED BY MANUFACTURER
POWER SUPPLY
INPUT VOLTAGE 120-240 VAC 50/60HZ
23 AMP

8002617223R
DISCONTINUED BY MANUFACTURER
ALLEN BRADLEY
POWER SUPPLY
AC/DC
3PHASE
W/CONF-COAT
