Amikon Limited carry a substantial inventory of Allen Bradley PLC spares, HMI, DC Drives, Servo & Inverter Drive. We majory in supplying ControlLogix, CompactLogix, SLC, PLC-5, PanelView, PanelView Plus ,Rockwell ICS Triplex Regentand Powerflex.
Amikon Limited carry a substantial inventory of Allen Bradley PLC spares, HMI, DC Drives, Servo & Inverter Drive. We majory in supplying ControlLogix, CompactLogix, SLC, PLC-5, PanelView, PanelView Plus ,Rockwell ICS Triplex Regentand Powerflex.

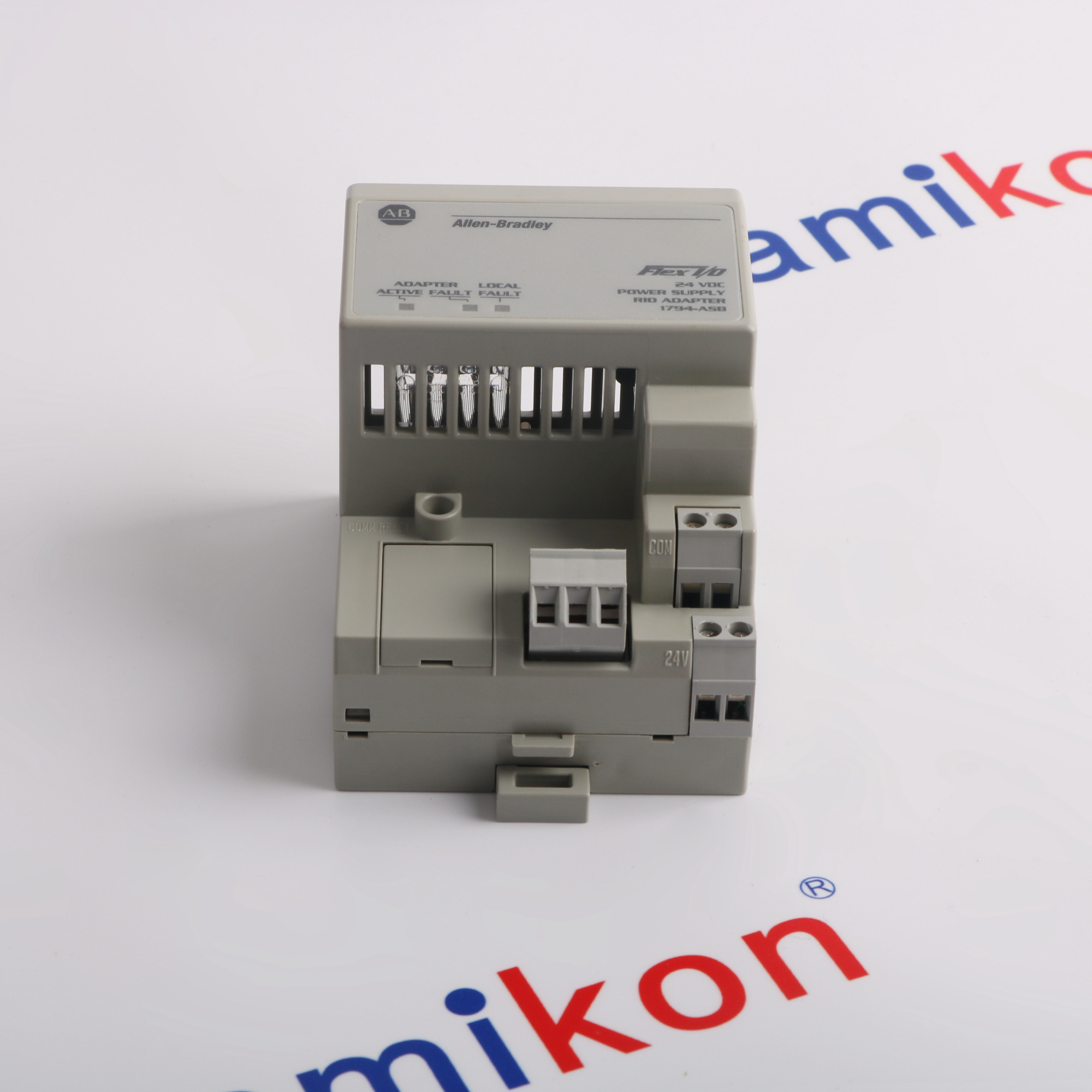

1794ASB
DISCONTINUED BY MANUFACTURER 2015-03-30
REMOTE I/O ADAPTER
24 VDC
FLEX
8 POINT
NETWORK: UNIVERSAL REMOTE I/O
I/O MODULE
Tariff Code: 8517620050
Country of Origin: United States
1771IFE
DISCONTINUED BY MANUFACTURER 05/31/2017
INPUT MODULE
16 POINT
ANALOG
12 BIT
0.75 AMP
5 VDC
Tariff Code: 8538909100
Country of Origin: United States
Number of inputs:16, nonisolated
On-state voltage, min:159V AC
On-state voltage, nom:240V AC
On-state voltage, max:264V AC
On-state current, min:5.30 mA
On-state current, max:13.29 mA
Nominal input impedance:22.2 kΩ
Nominal input current:11 mA @ 240V AC
Flexbus current:32 mA @ 5V DC
Power dissipation, max:6 W @ 264V AC
Number of I/O channels:16, nonisolated
On-state current:50 mA min per output
Surge current:7 A for 40 ms each
Off-state leakage, max:2.5 mA
Field Bus current:116 mA
Power dissipation, max:6 W @ 264V AC
Thermal dissipation, max:20.47 BTU/hr @ 264V AC
1734IT2I
I/O MODULE
TEMPERATURE
2 DIFFERENTIAL THERMOCOUPLES INPUTS
175 MA POINT BUS CURRENT
24 VDC
Tariff Code: 8538907080
Country of Origin: Singapore
Series:ControlLogix
Part Number/Catalog No.:1756-L74
Non-volatile memory:1GB
No. of task:32
I-O Memory:0.98 MB
User Memory:16 MB
Maximum Digital I-O:128,000
Current Draw (1.2 Volts DC):5 milliamps
Current Draw (5.1 Volts):800 milliamps
Power Dissipation:2.5 Watts
Series:SLC 500
Module Type:Power Supply
Input Voltage:120 to 220 Volts AC
Input Power:42 Watts
Inrush Current:20 Amps
Internal Current Capacity:2 A at 5V dc 0.46 A at 24V dc
Output Voltage Range:18 to 30 Volts DC
Backplane Current (5 Volts):2 Amps
Backplane Current (24 Volts):0.46 Amps
Frequency:47 to 63 Hertz
Location:1746 Chassis
Weight:2 pounds
Part Number/Catalog No.:1794-TB32
Product Type:Flex I/O Terminal Base Unit
Terminal Screw Torque:0.56-0.79 Nm
Supply Voltage Range max.:31.2V DC/AC, 50/60Hz, 10A
Isolation Voltage:50V Continuous max.
Voltage Rating:24V DC/AC
1771NIS
DISCONTINUED BY MANUFACTURER
DISCONTINUED SINCE 2017
CURRENT INPUT MODULE
ANALOG
HIGH RESOLUTION
ISOLATED
LOOP POWER
4-20 MA
8 INPUT
Country of Origin: United States
1746IB32
INPUT MODULE
SLC500
DIGITAL
32 POINT
8 PT/COMMON
SINK LOAD
15-30 VDC AT 50 C / 122 F
15-26.4 VDC AT 60 C / 140 F
BACKPLANE CURRENT 50 MA AT 5 V
