Output Voltage range:10-31.2 VDC
Nominal output voltage:24VDC
Module Keying:Electronic
Outputs:16-Point Electronically Fused
Voltage:12-24 Volts DC
Operating Voltage Range:10-30 Volts DC
Maximum Output Current Rating-Point:1 Amp at 60 Celsius
Outputs:16-Point Diagnostic
Voltage:24 Volts DC Source
Operating Voltage Range:19.2-30 Volts DC
Maximum Output Current Rating-Point:2 Amps at
Power Dissipation (Max):3.3 Watts at 60 Celsius
Backplane Current at 5 Volts:250 milliamps
Backplane Current at 24 Volts:140 milliamps
1756L71
PROCESSOR MODULE
CONTROLLOGIX
LOGIX5571
CONTROLLER
2 MB USER MEMORY
0.98 MB I/O MEMORY
USB PORT
CHASSIS MOUNT
Tariff Code: 8537109060
Country of Origin: United States

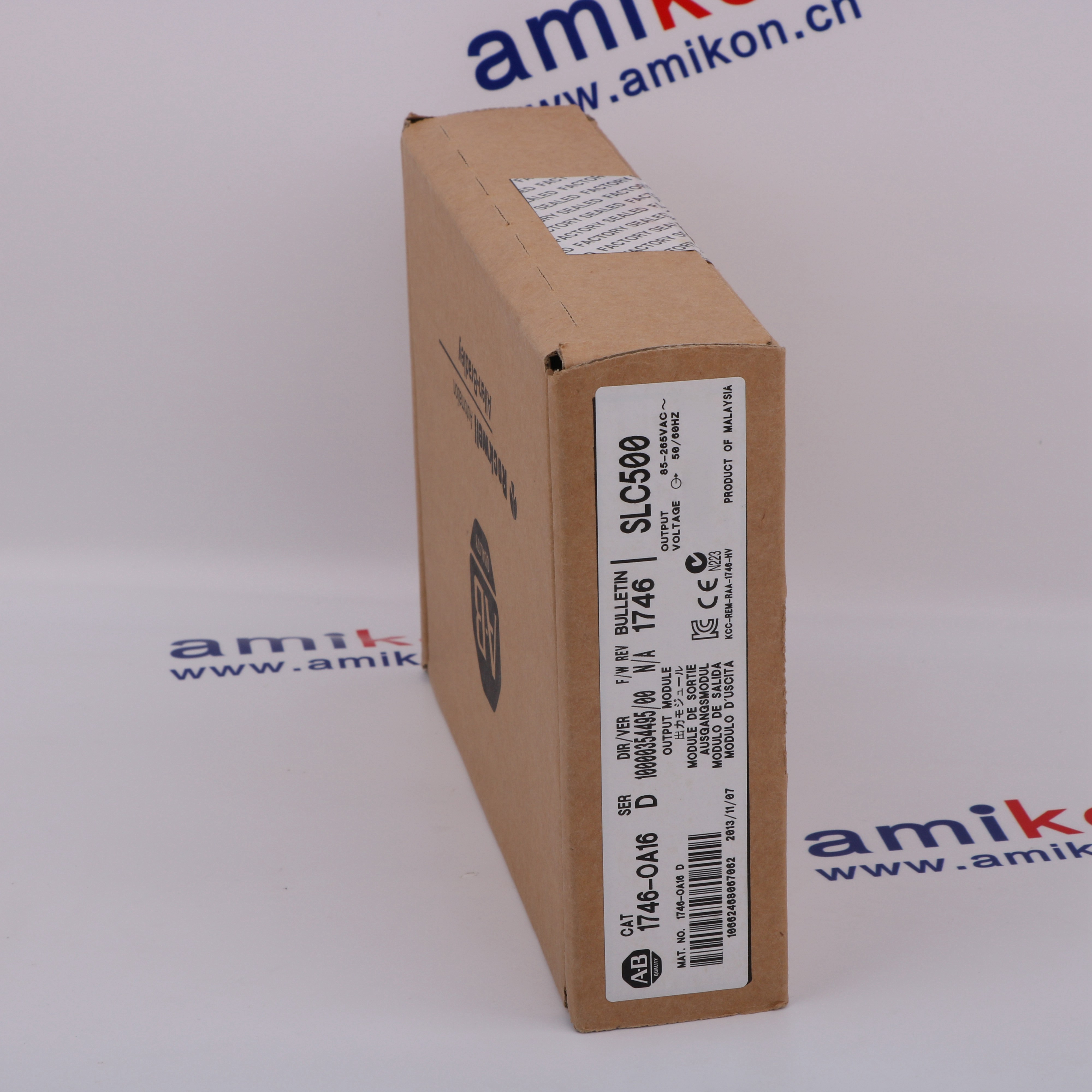

1746OA16
I/O MODULE
16 OUTPUTS
85-265 VOLT AC
370 MA
BACKPLANE CURRENT LOAD
GENERAL PURPOSE 120/240 VOLT OUTPUTS
Tariff Code: 8538903000
Country of Origin: Malaysia, Japan
Series:SLC 500
Module Type:Analog Output Module
Backplane Current (5 Volts):55 milliamps
Outputs:Four (4)
Backplane Current (24 Volts DC):195 milliamps
Output Current range:0 to +20 mA
Full Scale Output:21 mA
Overrange Capability:5% (0 to +21 mA - 1 LSB)
Current Output Coding:0 to +32764
1746NI8
DISCONTINUED BY MANUFACTURER
INPUT MODULE
8 POINT
ANALOG
20 MA
10 VDC
FAST SIGNAL CONVERSION
Tariff Code: 8538907080
Country of Origin: United States
Product Family:Compact I/O
Module Type:RTD Module
Input Type:Resistance
Current draw @ 5.1V:100 mA
Series:A and B
Current draw @ 24: 35 DC
Replacement Door Part Number:1769-RD
Heat dissipation, max:1.5W
Replacement Door Label Part Number:1769-RL2 series B
Converter Type:Sigma Delta
Input Power:120 to 240 Volts AC
Inputs:(20) 24 Volts DC and (4) Fast 24 Volts DC
Outputs:(16) Relay
Operating Temperature:0 to 50 degrees Celsius
Input Circuit Type:24 Volts DC Sink/Source
Operating Frequency:47 to 63 Hertz
Relay Contact Rating:24-125VDC; 120-240VAC
Ambient Operating Temp:0 to 55 degrees Celsius
Input Voltage:120 to 220 Volts AC
Input Power:92 Watts
Typical line power requirement:180VA
Inrush Current:45 Amps
Backplane Current (5 Volts):10 Amps
Internal Current Capacity:10.0 A at 5V dc 2.88 A at 24V dc
Output Voltage Range:18 to 30 Volts DC
CPU Hold up time:20 ms (full load) 3000 ms (no load)
Backplane Current (24 Volts):0.46 Amps
