Gate Driver Board

Input Voltage Range: 15-30V DC
Output Drive Voltage: +15V/-8V
Peak Output Current: ±20A
Isolation Voltage: 2500V AC
Propagation Delay: <100ns
Compatible IGBTs: 1200V-1700V
Gate Resistor Range: 1-10Ω
Input Signal: TTL/CMOS compatible

Safe line-monitored digital input module with earth fault monitor (16 channels) (conformal coated)

Control Module

Operating Voltage: 24V DC (±10%)
Power Consumption: 5–10W
Isolation: 1500V AC
CPU: 32-bit RISC-based processor
Clock Speed: 100–200 MHz
Memory Flash:16–32 MB
Digital I/O: 24V DC

Circuit Board

Supply Voltage: 24V DC (±10%)
Power Consumption: 15W (typical)
Operating Current: 0.5-1A
Isolation Voltage: 2000V AC
Main Processor: 32-bit DSP or microcontroller
Clock Speed: 100-200MHz

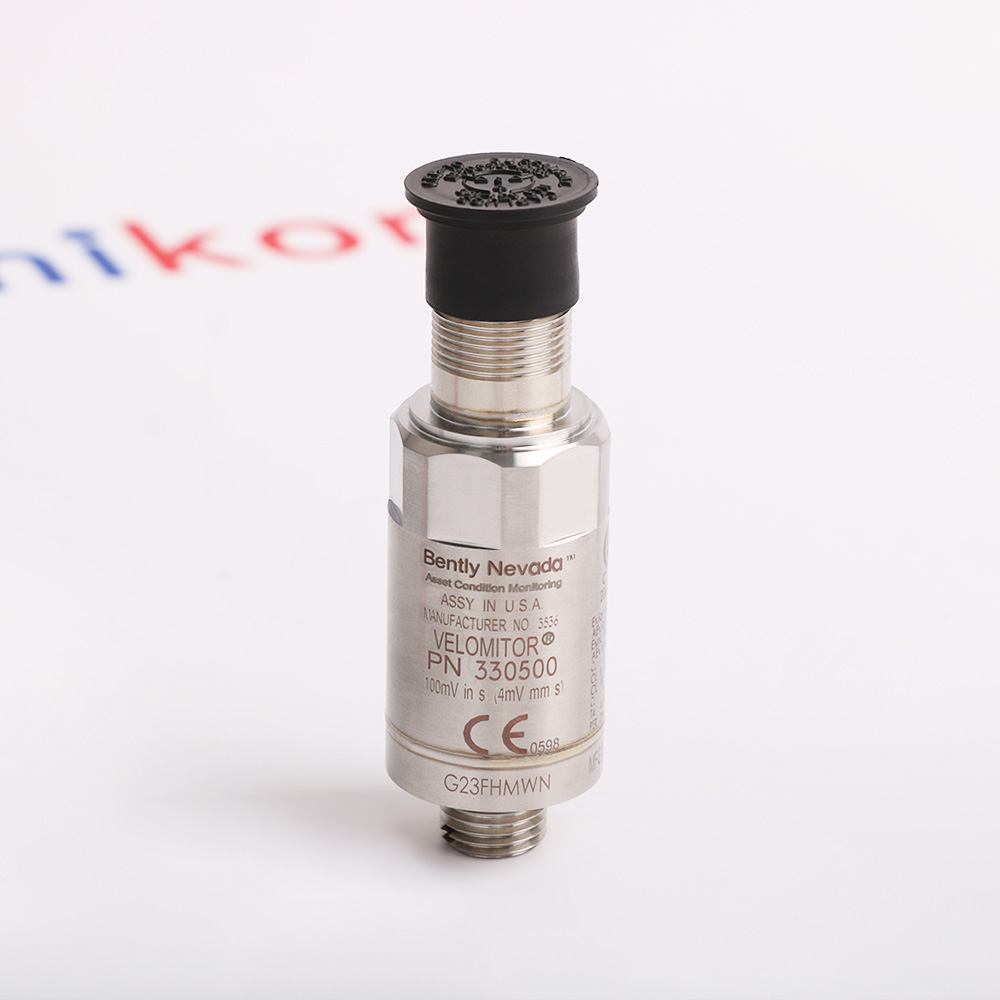

Velomitor XA Piezo-Velocity Sensor

Sensitivity:3.94mV/mm/s (100 mV/in/s)±5%
VelocityRange:1270 mm/s (50 in/s) peak
Transverse Sensitivity:Less than 5% of sensitivity
Amplitude Linearity:±2% to 152 mm/s (6 in/s) peak
MountingTorque:45 N-m (33 ft-lb) maximum

Inverter Drive

IGCT MODULE

Voltage Rating:4500V (VCES)
Current Rating:4000A (IT(RMS))
Max. Turn-off Current:6000A (ITGQM)
On-State Voltage Drop:1.85V (typical @ 4kA)
Switching Frequency:Up to 500Hz
Gate Driver Voltage:±20V (isolated)

Current Input Module

16, isolated
4 to 20 mA
24 mA
270 Ω (20 mA) to 350 Ω (4 mA)
±16 µA
230 mA (5 V DC), 540 mA (24 V DC)

Power supply module

Input Voltage Range:85-264V AC (47-63Hz)
Output Voltage: 24V DC (±1% regulation)
Output Current: 10A
Power Rating: 240W
Inrush Current: <30A (at 230V AC)
Overvoltage Protection: 28V DC
Overcurrent Protection: 110-130% of rated current
Line Regulation: ±0.5% (85-264V AC)
Load Regulation: ±1% (20-100% load)

Modbus TCP/IP to EtherNet/IP Gateway

Backplanes

1 to 16 module slots
Seamless connection / possible
Stabile mechanics / compact design
Vibration proof fixing of modules
Can be snapped on EN 60715 DIN rail

Analog Input Module - HART

Digital Input Module

Driver board

Model Number: UF C911B108 3BHE037864R0108
Input Voltage: 24V DC
Output Voltage: Adjustable based on application requirements
Operating Temperature: -20°C to 70°C (-4°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Humidity Range: 5% to 95% (non-condensing)

Communications I/O Module

Supply Voltage: 24V DC (±10%)
Power Consumption: 3.5W (typical)
Primary Protocol: Profibus DP
Data Rate: 9.6kbps to 12Mbps
Connector Type: 9-pin D-sub
Isolation: 1500V AC
Digital Inputs: 8 channels

Communications I/O module

Supply Voltage:24V DC (±10%)
Power Consumption:4W (typical)
Inrush Current:<15A (20ms)
Backplane Current:500mA max
Output Isolation:3000V AC
Data Rates:9.6 kbps – 12 Mbps
Connector:9-pin D-sub (RS-485)
Address Range:0–126
Isolation:1500V AC

Exciter Control Module

Supply Voltage: 110/220V AC ±10%
Power Consumption: ≤15W
Generator current: 0-5A AC (CT input)
Field voltage: ±200V DC
Field current: ±5V DC
Response Time: <20ms for 95% step response
