ABB

VDU Board

Voltage: 24 V DC (±10%)
Power Consumption: ≤15 W
RAM: 1–2 GB DDR3
Storage: 4–8 GB Flash
Video Input: VGA/HDMI for external display connectivity.
USB Ports: 2x USB 2.0/3.0 for peripherals (e.g., keyboard, mouse).
Ethernet: 10/100/1000 Mbps (RJ45) for network integration

Channel Control Unit

Voltage: 24 V DC (±10%)
Power Consumption: ≤4 W
Digital: 24 V DC (sink/source).
Analog: 4–20 mA, 0–10 V
Analog inputs: ±0.05% of full scale (at 25°C).
Digital response time: ≤1 ms
Overvoltage Protection: ±30 V

Channel Control Unit

Voltage: 24 V DC (±10%)
Power Consumption: ≤4 W
Digital: 24 V DC (sink/source).
Analog: 4–20 mA, 0–10 V
Analog inputs: ±0.05% of full scale (at 25°C).
Digital response time: ≤1 ms
Overvoltage Protection: ±30 V
Removable screw terminals (0.2–2.5 mm² / AWG 24–12)

CONNECTION UNIT

Model: PFSK108
Part Number: YM322001-EH
Voltage: 24 V DC
Wire Gauge Support: 0.2–2.5 mm²
Max Current: 10 A
Digital I/O (24 V DC).
Analog signals (0–10 V, 4–20 mA).

Analog Input Module

Model: PFSK110
Part Number: YM322001-EP
Voltage: 24 V DC (±10%)
Power Consumption: ≤3 W
Voltage: 0–10 V, ±10 V
Current: 0–20 mA, 4–20 mA
Accuracy: ±0.1% of full scale (25°C)
Sampling Rate: 100 samples/sec per channel
Operating Temperature: -20°C to +60°C (-4°F to +140°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Humidity: 5–95% (non-condensing)
Vibration Resistance: 5–100 Hz

Signal Processing Control PLC Circuit Board

Model Number: PFSK106
Part Number: YM322001-EC
Voltage: 24 V DC (±10%)
Power Consumption: ≤5 W
Digital Inputs: 16 channels
Flash: 512 KB
Analog Inputs: 8 channels

Power Factor Controller

Sensitivity: ≥ 20 mA.
Frequency range: 50 or 60 Hz +/- 5%
Input current impedance: < 0.1 Ohm
Controller energy consumption: ≤ 15VA
Maximum inductive load AC 250V/2.0A
Voltage: ±1%
Current: ±1%
Power factor: ±1.5%
Active power: ±2.5%
Reactive power: ±2.5%

OUTPUT MODULE

OUTPUT MODULE
SYMPHONY PLUS
DIGITAL
16 CHANNEL
OPEN COLLECTOR

Digital Input Module

DIGITAL INPUT MODULE
SYMPHONY PLUS
INFI 90
DI Module. 16 CH
Universal, 32 Jumpers

Universal Signal Converter

Brand:ABB
Input Range:0 → 10 V, 0 → 20mA
Mounting Type:DIN Rail
Operating Temperature Range:-20 → +60°C
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:+60°C

Driver board

Input Voltage Range: Typically 24V DC
Output Voltage Range: Dependent on the connected load
Current Rating: Up to 10A
Power Rating: Typically around 240W
Operating Frequency: 1kHz to 20kHz

IGBT MODULE

INVERTER TRIGGER DRIVER BOARD
PROTECTION
Rated Voltage (V_CE):650V
Rated Current (I_C):70A
Peak Current (I_C_peak):Up to 180A
Power Dissipation:150W to 300W
Switching Frequency:Up to 20 kHz
Thermal Resistance (R_thJC):1.5°C/W to 2.5°C/W
Junction Temperature (T_j):-40°C to 150°C

Transducers Current Sensors

Part Status:Not For New Designs
For Measuring:AC/DC
Current - Sensing:1000A
Frequency:DC ~ 150kHz
Linearity:±0.1%
Accuracy:±0.4%
Voltage - Supply:24V
esponse Time:1µs
Current - Supply (Max):20mA
Operating Temperature:-10°C ~ 70°C

INVERTER ACS850 SERIES ADAPTER BOARD

PC BOARD
INVERTER ACS850 SERIES
ADAPTER BOARD

Contactor

220-230V 50Hz / 230-240V 60Hz
Model Number: A30-30-10
Rated Operational Current (Ie): 30 A
Rated Operational Voltage (Ue): Up to 690 V AC
Control Voltage: 24-230 V AC/DC
Poles: 3 (3-phase)
Mechanical Life: Up to 10 million operations
Electrical Life: Up to 1 million operations
Enclosure Rating: IP20

Frequency converter

ACS510-550 Frequency converter
Model Number: 3X4K7 10028493B
Input Voltage: 3-phase, 380-480 V AC
Output Voltage: 0-480 V AC
Frequency Range: 0-400 Hz
Rated Power: 7.5 kW (10 HP)
Current Rating: 16 A
Enclosure Rating: IP20 (suitable for panel mounting)
Cooling Method: Air-cooled

Main Circuit Interface Board

Manufacturer: ABB
Model: RINT-6512C
Type: Main Circuit Interface Board
Function: Interfaces between control logic and power circuits in drives/inverters.
Voltage Rating: 24V DC
Temperature Range: -20°C to +70°C.
Humidity: Up to 95% (non-condensing).

Driver board

RINT-6421C
68638721C
Supply Voltage:24 V DC (±10%)
Power Consumption:1.5 W
Isolation:500 V AC

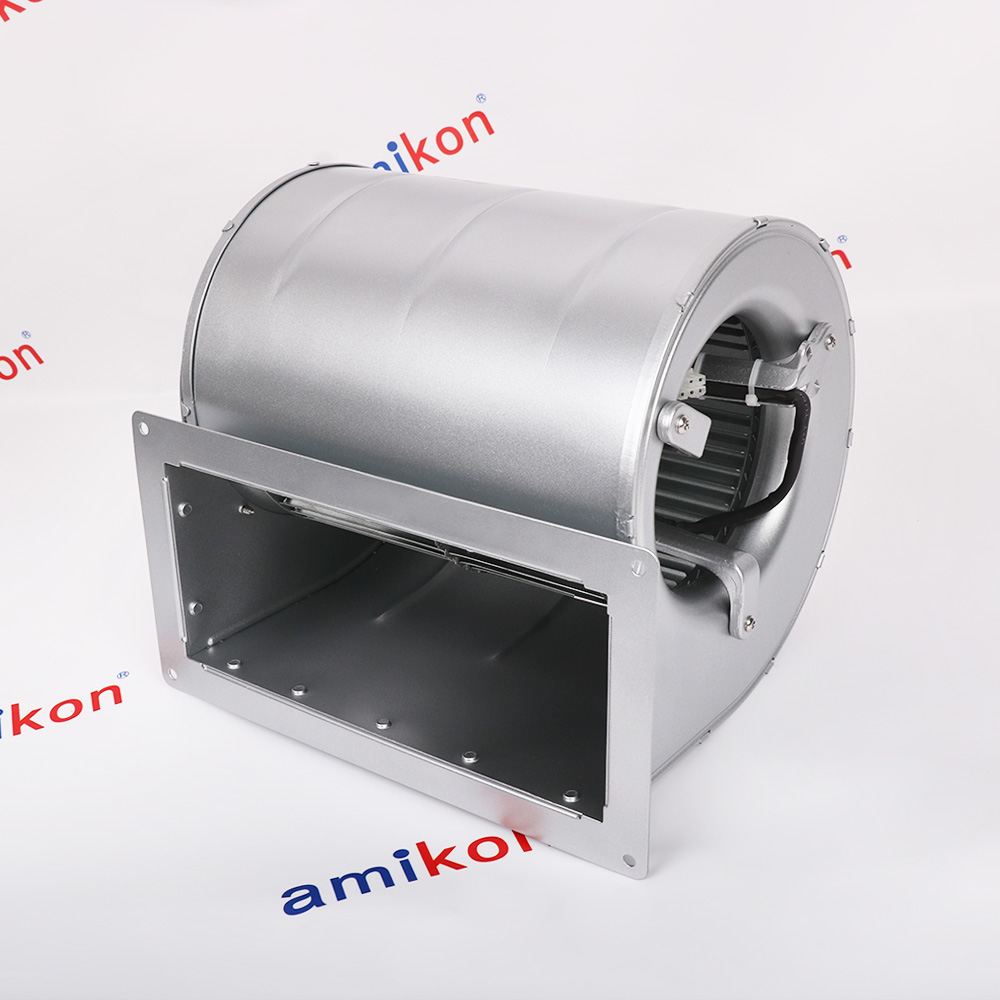

FAN

Voltage: 230V AC
Frequency: 50/60 Hz
Current Consumption: Approximately 0.3A
Power Consumption: Around 65W
Airflow: Approx. 280 m³/h (165 CFM)
Speed: 2650 RPM
Noise Level: Approx. 55 dB(A)

Processor board

AC 800M series systems
Voltage Supply: Typically 24 VDC
Operating Temperature Range: -20°C to +60°C
Storage Temperature Range: -40°C to +85°C.
Humidity: 5% to 95%

IGBT Module

Voltage Rating: 1200 V
Current Rating: 450 A
Configuration: Sixpack
Technology: IGBT3 – E3
Package Type: EconoPACK™ + B

VSC power board

1VCR017053G0006
V-Contact VSC contactors
VSC power board

Current Monitor Board

Power Supply:  24V DC
Type: Current Monitor Board
Operating Temperature: Ranges from 0°C to 60°C
Communication Interface: RS-232, RS-485, or similar

Control Card

Catalog Description:
V PP C905 AE101; CCB-2 COMPLETE
Long Description:
V PP C905 AE101

DIODE FAILURE DEFECTION BOARD

FOUNDATION Fieldbus Linking Device
Number of channels :4
Transfer rate:31.25 kbit/s
DIODE FAILURE DEFECTION BOARD
