Number of outputs 16-channel, module isolation
Output voltage 24 V DC
Output voltage drop 1 V maximum
External power supply rating 24 V DC, 3.4 A minimum
Maximum leak current at output off status 1.6 mA
Output format Current source
Maximum load current 0.2 A/output line
Minimum load current 35 mA
Load resistance range 120 to 685 Ω
Output response time 30 ms maximum
Number of input channels:16, isolated
Input signal:4 to 20 mA
Allowable input current:24 mA
Accuracy:±16 µA
Data update period:10 ms
Drift due to ambient temperature change:±16 µA/10 ˚C
Maximum current consumption:230 mA (5 V DC), 540 mA (24 V DC)
Function: ESB bus master interface function
Number of connectable units: 9 units maximum
Transmission speed: 128 Mbps
(I/O module data transmission)
Transmission distance: 10 m maximum
Current consumption: 0.5 A
Display Type:LCD
Communication Interface:Serial/FBP/Ethernet
Memory Size:9728 kB
Memory Size User Data:5632 2 kB
Memory Size User Program:4096 2 kB
Memory Type User Data:RAM
Controller Processing Time:0.000002 ms
Degree of Protection:IP20
Rated Voltage (Ur):24 V DC
Supply Voltage:20.4 … 28.8 V DC
Series:Series 90-70
Manufacturer:GE Fanuc
Part number:IC697MDL940
Current draw:750 mA
Switching frequency:20 Cycles per minute
Response time:10 ms
Number of outputs:16
No. of groups:Two (2) Groups of Form A
No of Channels:Sixteen (16) Relay outputs
Required current:750 milliAmps
Minimum load:10 mA
Isolation voltage:1500 Volts
Allows easy access for external systems
to communicate with a Trusted System
Easy installation i.e. connects directly to the back of the Trusted Communication Interface.
Two 10/100BaseT connections.
Four RS422/485 connections.
Two RS232 connections
Number of inputs : 4 per MPC4 card
DC range : 0 to +20 V or 0 to −20 V
AC range : ±10 V max.
Common mode voltage range : −50 to +50 V
CMRR : >60 dB at 50 Hz
Crosstalk : −72 dB
Input impedance : 200 kΩ
Current input range
DC signals : 0 to 25 mA
AC signals : ±8 mA max.
Analog frequency range : DC to 60 kHz (−3 dB)
BDPS-11C
3AXD50000042965
Braking Chopper System
Input Voltage (DC):1000–1200 V DC link
Max. Braking Power:250–1000 kW
Certifications"CE, UL, and IEC 61800-5-1
Operating Temperature: -15°C to +45°C
Product:IGBT Silicon Module
Configuration: 6-Pack
Collector- Emitter Voltage VCEO Max:1.7 kV
Continuous Collector Current at 25 C:740 A
Gate-Emitter Leakage Current:400 nA
Pd - Power Dissipation:3 kW
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 150 C
Packaging:Tray
Product Type:IGBT Modules
PanelView Plus 7 Performance terminals
Operator Input:Touch
Touch screen: Analog resistive touchscreen
Actuation rating:1 million presses
Operating force:100 grams
Display Type:Color active-matrix TFT
Input Voltage range:18-30 VDC
Power Consumption:50 W max (2.1 A at 24V DC)
Accuracy: ≤±1.5%
Linear error: ≤±0.5%
Output allowable load: >100 kΩ voltage output.< 325Ω current output.
Characteristics of relay
Trunk name: RL1 to RL4
Rated voltage: 250 VAC
Rated current: 5 AAC
Maximum breaking capacity (no contact protection) : 1250 VA
330103 3300 XL 8 mm Probe
M10 x 1 thread,without armor
Minimum unthreaded length: 0 mm
Minimum case length: 60 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable

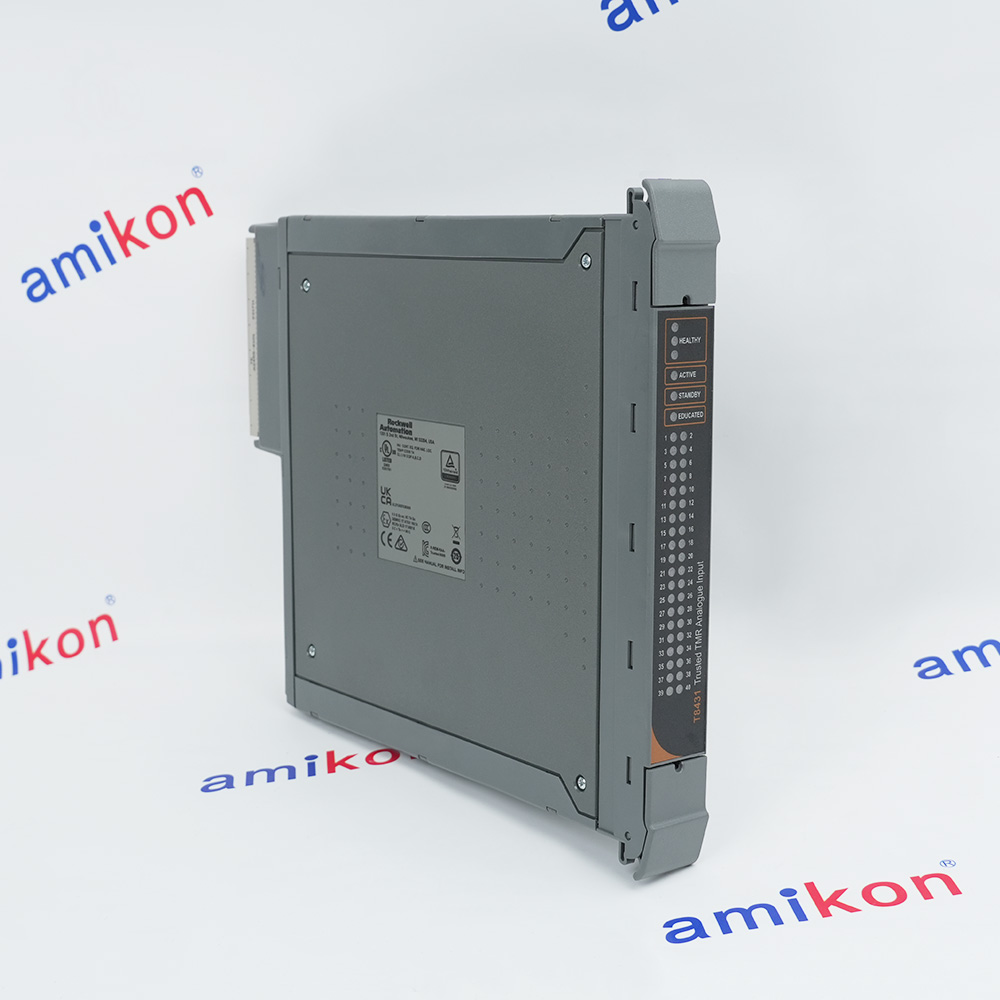

Points:32, commoned
Nominal input current:4–20 mA DC
Operational current range:2–22 mA DC
Absolute maximum field voltage:33 V DC
Absolute maximum input current:50 mA DC
Input bandwidth (3dB):16 Hz
Source impedance:180 Ω
Resolution:12 bits
Absolute error:0.15% of full scale (20 mA)
Diagnostic:Force-to-value diagnostic (FVD)
Scan time:<1 ms for all 32 points
